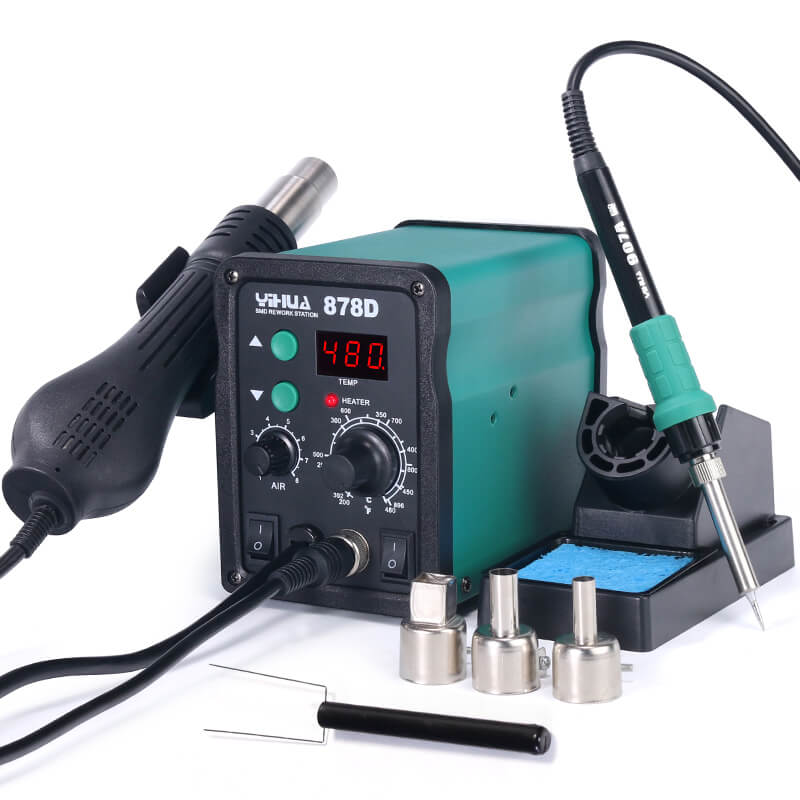

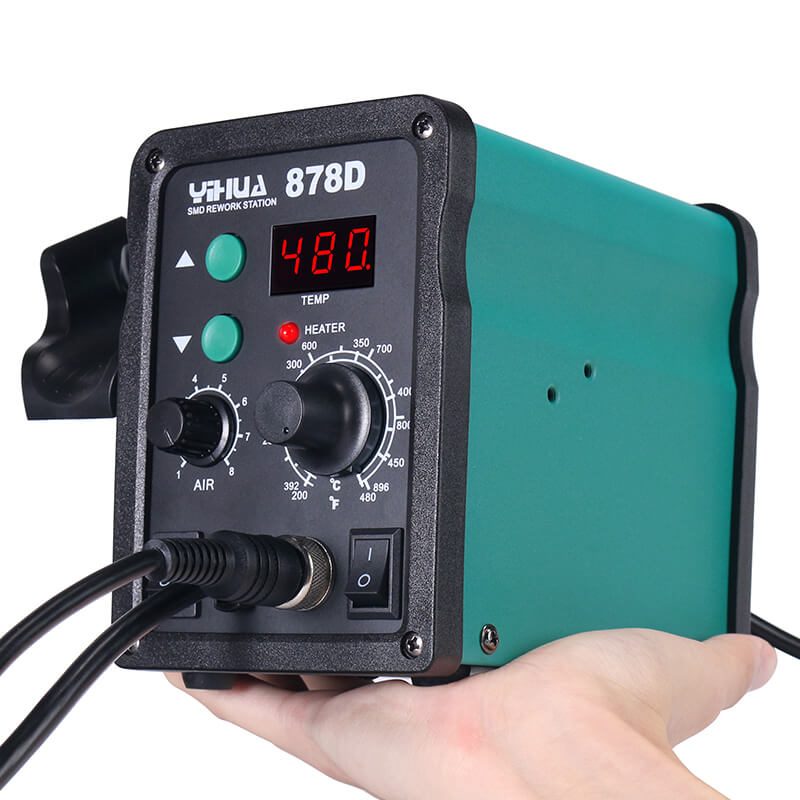

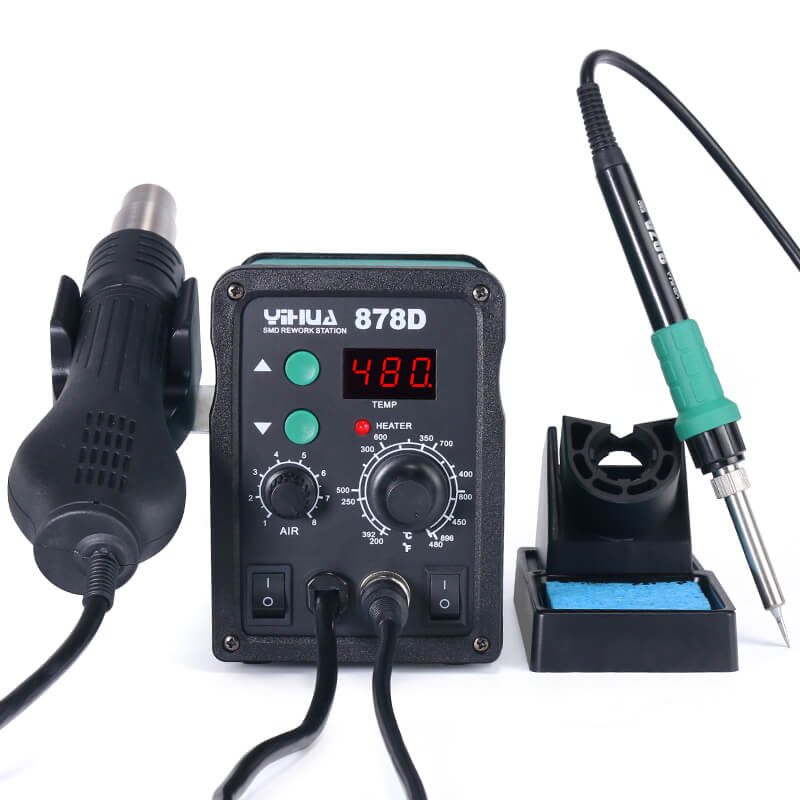

Combined soldering station with soldering pen and hot air gun. Product ideal for model makers.
Soldering pen allows classic soldering, hot air gun then allows shrinking tubes, soldering wires with hot air without flame, preheating soldered parts, tightening coating films, drying colors, burning off plastic nets, and so on.

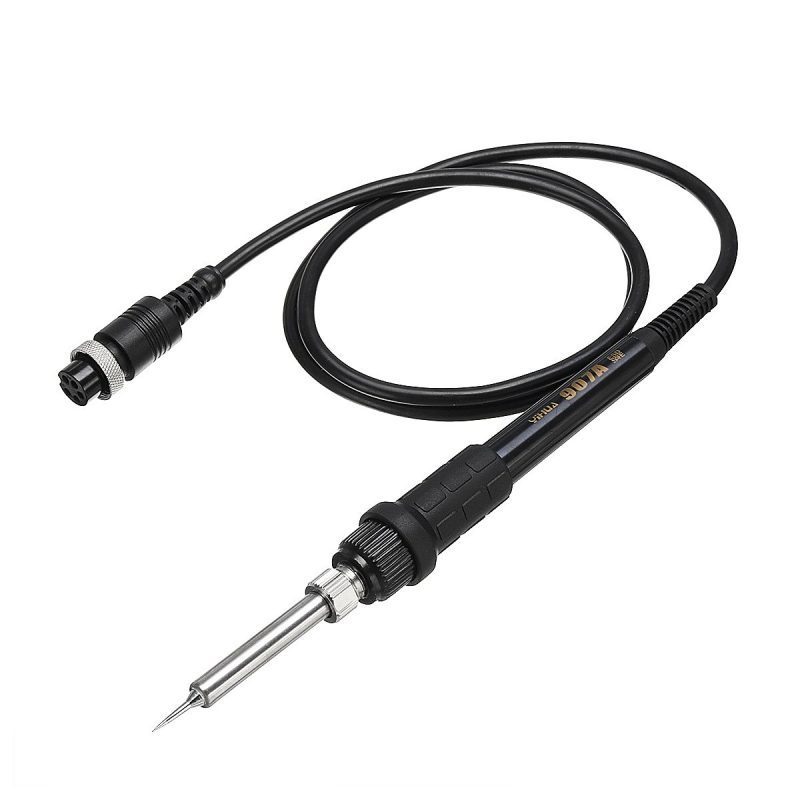

Soldering pen: analog adjustable temperature from 200°C to 480°C, replaceable soldering tips.
Hot air function is independent, allows continuous air flow control up to 120l/min and temperature ranging from 100 to 480°C independently of each other.

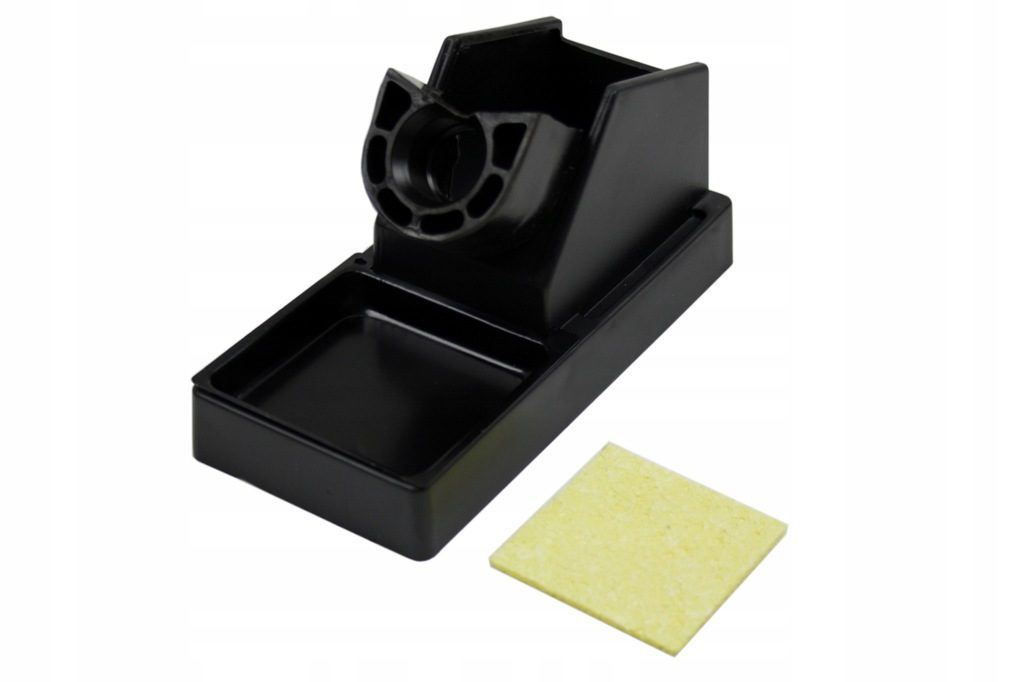

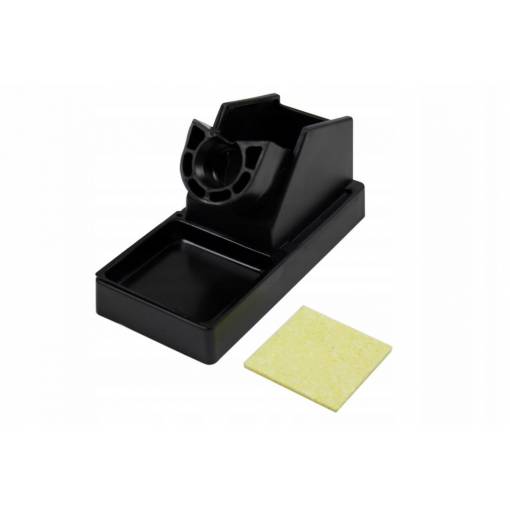

In the stand is integrated a contactless switch, so after placing the gun into the stand it switches to standby mode, after taking it out it immediately starts again with the previously set temperature. The station has digitally adjustable hot air temperature with +/- 1°C tolerance

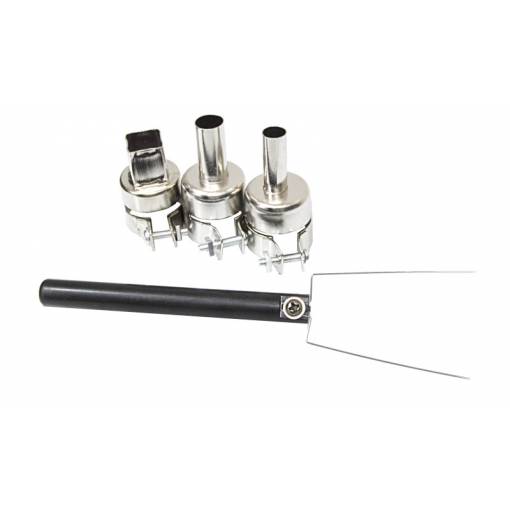

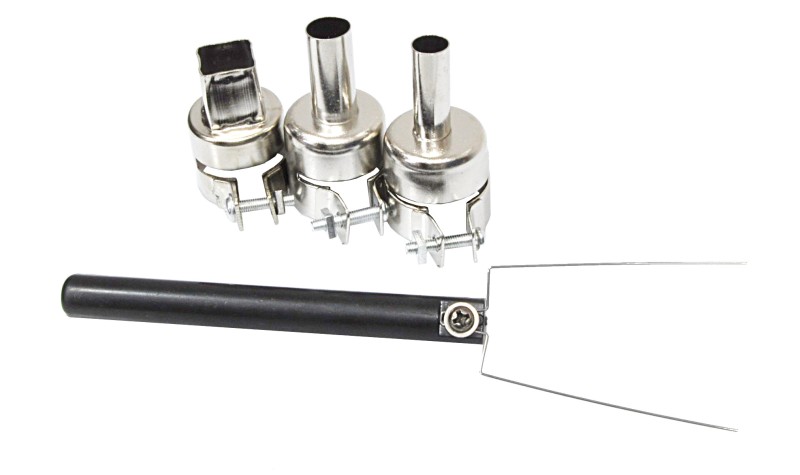

The set includes 3 nozzles for the hot air gun: 2 round ones with a diameter of 7 and 9 mm and square 12 x 12 mm for finer work.
Width of the gun tip without nozzles is 20 mm, making it smaller than standard hot air guns and also much lighter.
The device is compact and fits easily on any work desk. The dimensions of the main unit are approx. 10 x 14 x 15 cm.
The device has a central switch on the back, both circuits then have separate switches on the front panel.
Soldering station is equipped with a powerful heating element for fast heating
It has smooth air regulation and temperature regulation.
The handle is mounted with a high flow air turbine max. 120 l/min, its brushless motor is quiet and provides stable blowing.
The station is designed for soldering components such as SOIC, QFP, PLCC, BGA, SMD.
The Yihua 878D soldering station is equipped with a high-power flask of 50W, and has ESD protection for electronic components from damage by static charge.
- 2-in-1 station micro soldering iron and hot air
- ESD SAFE protection
- Blowing from the fan
- Large quantities of compatible tips available
Specificații:
- Alimentare: AC 230V 50 - 60Hz
- Putere: 700W
- Temperatura de funcționare: 0 - 50°C
- Temperatura de depozitare: -20 - 80°C
- Dimensiuni: 170 x 100 x 135 mm
