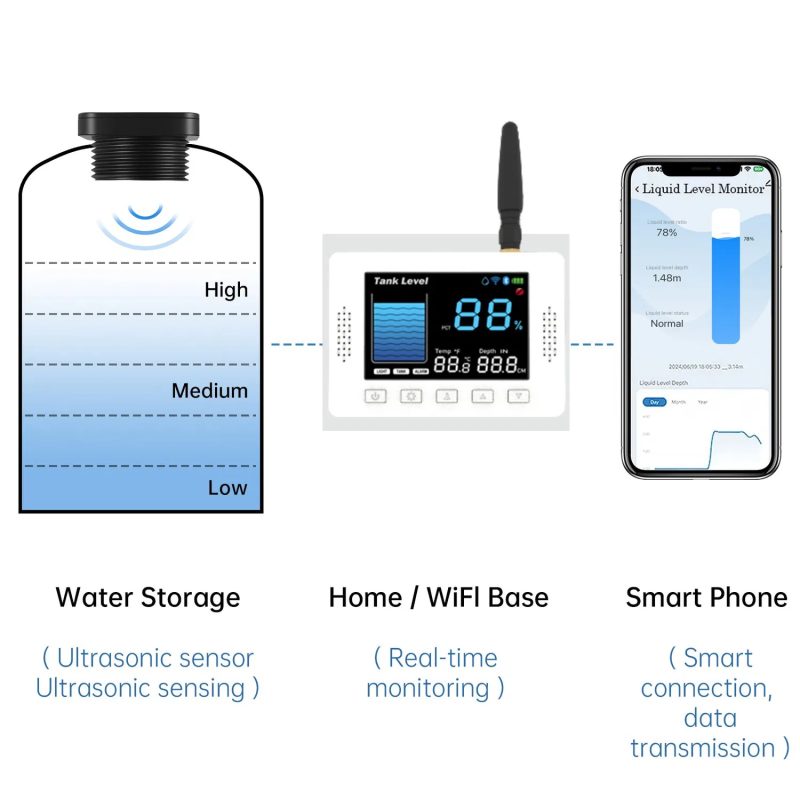

LC2502 is an advanced system for measuring and monitoring liquid levels in real time. Ideal for water, oil, or other liquids. Thanks to ultrasonic technology, this set offers simplicity and reliability in measurement.
Lora communication ensures data transmission to the LCD monitor over long distances and Wi-Fi connectivity allows for internet connection and convenient control and monitoring from the app from anywhere.

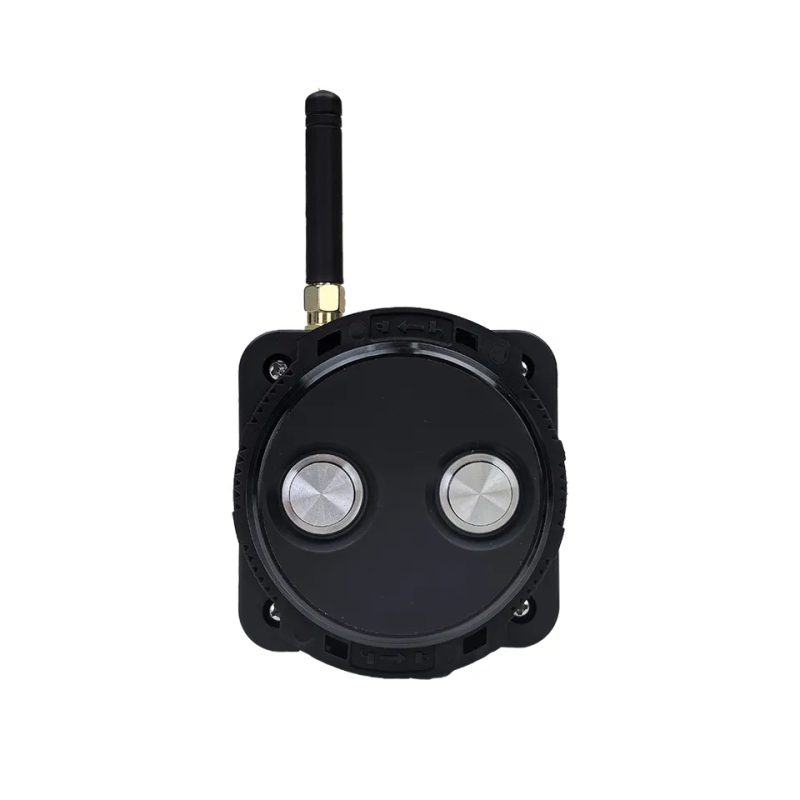

The sensor itself is waterproof and easy to install, capable of measuring liquid levels up to 3m away.
An advantage is the external detachable antenna that not only provides better signal amplification but, when connected to a suitable extension cable (coaxial SMA), can be placed in a better elevation.
The sensor is suitable for:
- Home tanks for water, rainwater, septic tanks, and other large containers.
- Industrial and commercial operations, chemical industry, farming.
- Absolutely suitable for inaccessible or remote places where it is necessary to monitor levels without physical access.
Specifications:
- Maximum measurement depth from the sensor: 300cm
- Minimum distance of the level from the sensor: 10cm
- Maximum distance of the level from the sensor: 290cm
- Alarm setting for lower limit: 0-99%
- Alarm setting for upper limit: 100-1%
- Power supply of the sensor: 5VDC, <100mA (constant consumption outside transmission <30mA)
- Possibility of external power supply: USB-C, 5V, <100mA
- Possibility of battery operation of the unit: 3xAAA 1.5V
- Communication: LoRa 868MHz
- Distance of communication between the sensor and the unit: depending on conditions 100m or more (tested up to 100m through several strong concrete walls)
- External antenna: the sensor and unit have mutual communication with an external antenna with SMA connector
- WiFi support: Yes 2.5GHz (does not support 5GHz)
- Application: TUYA, SmartLife

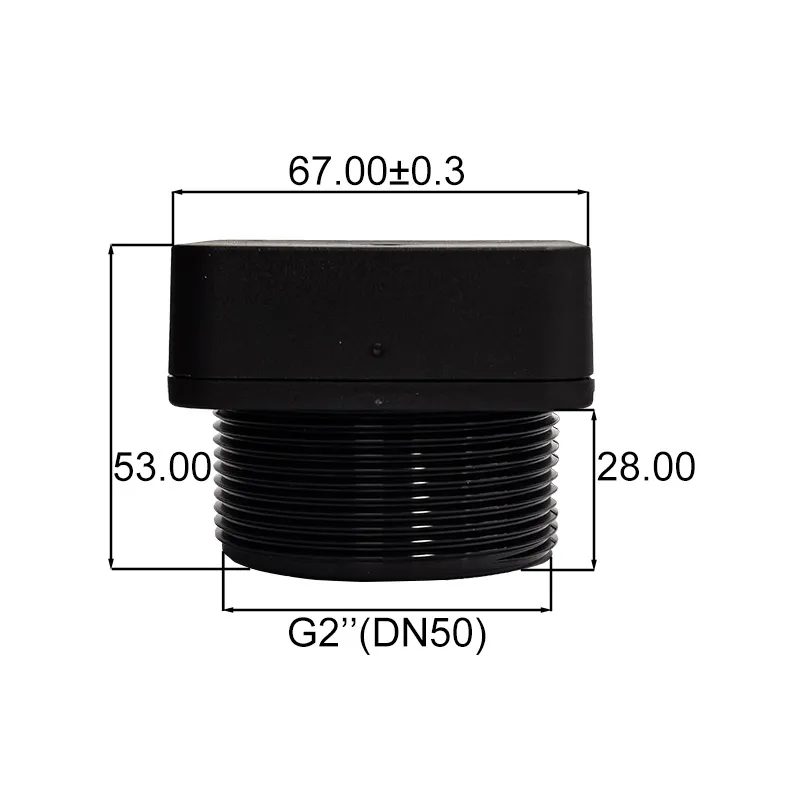

- Sensor mounting hole: 59mm
- Waterproof sensor: IP65
- Length of the power cable of the sensor including adapter: >5m
- Length of the power cable of the USB-C adapter for the unit: >1.2m
- Display of the unit's temperature. (not the sensor in the tank)

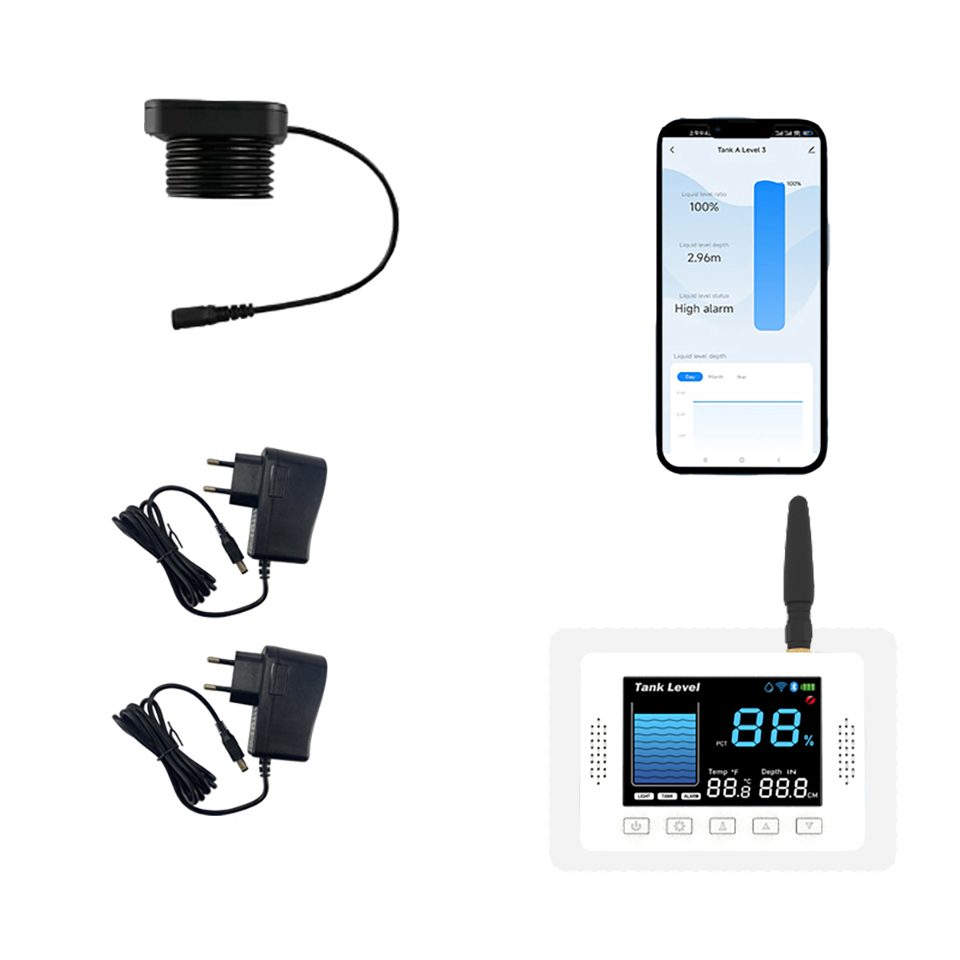

Contents of the package:
1x ultrasonic level sensor IP65

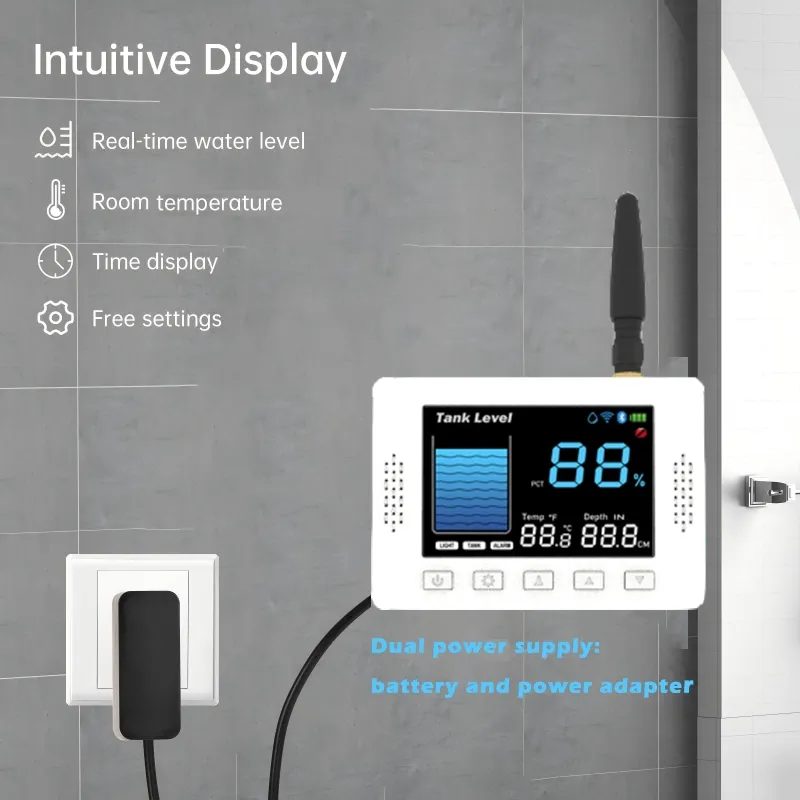

1x LCD monitoring unit
1x power adapter 5V with coaxial waterproof connector for the sensor
1x power adapter 5V with USB-C connector for the unit
2x antenna 868MHz with SMA-Male connector
1x mounting nut
1x EN manual (CZ manual available for download)
